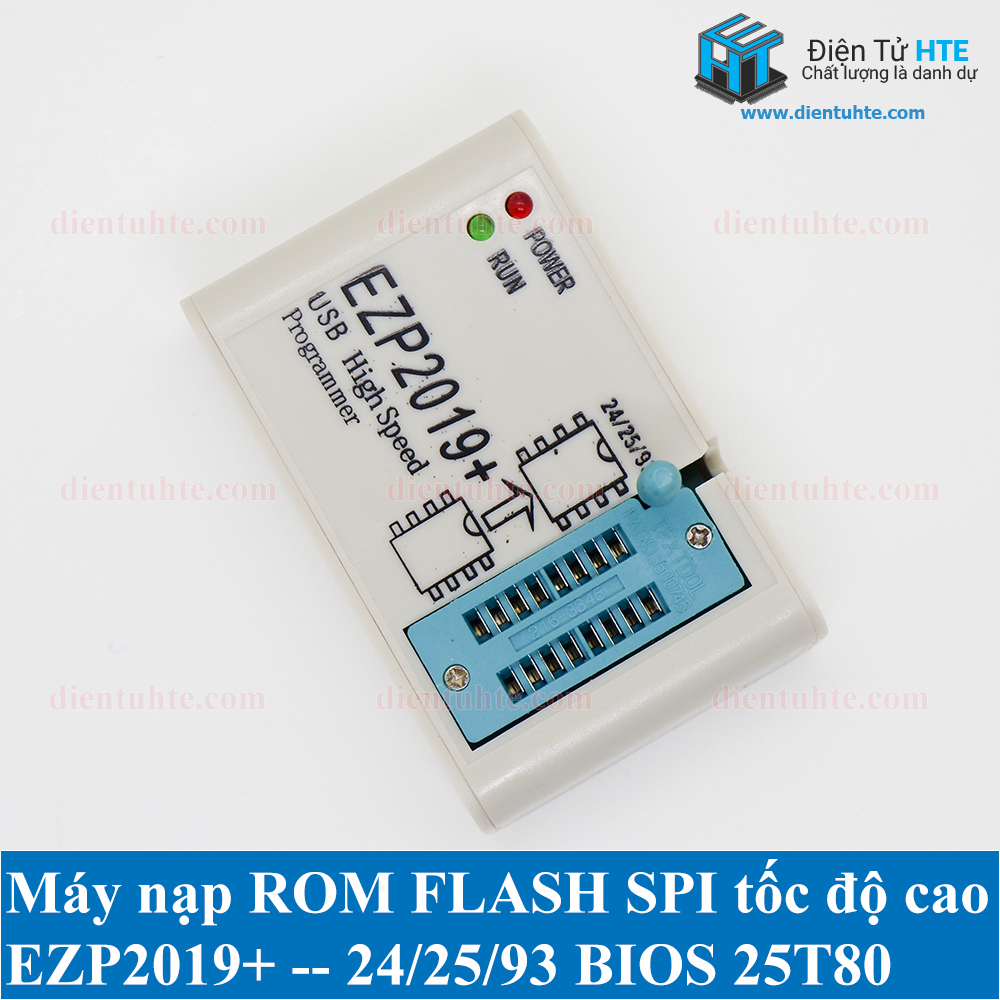

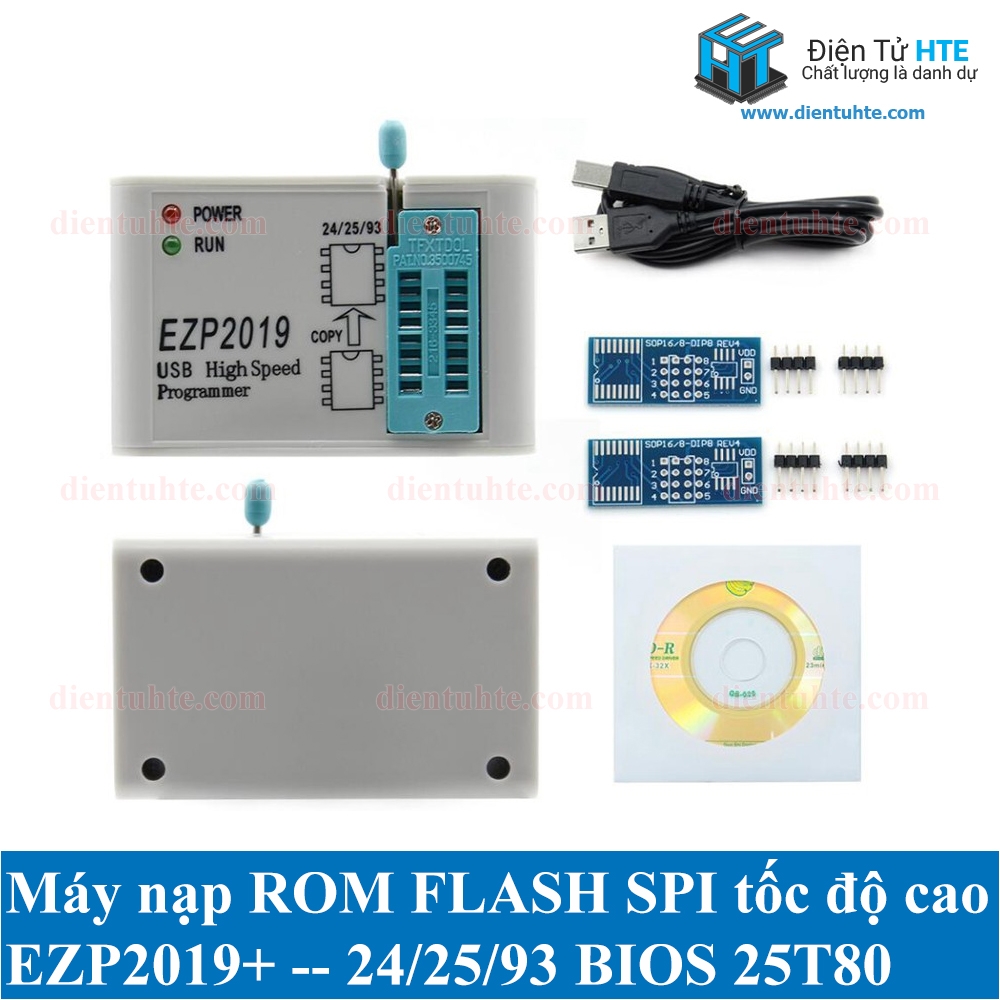

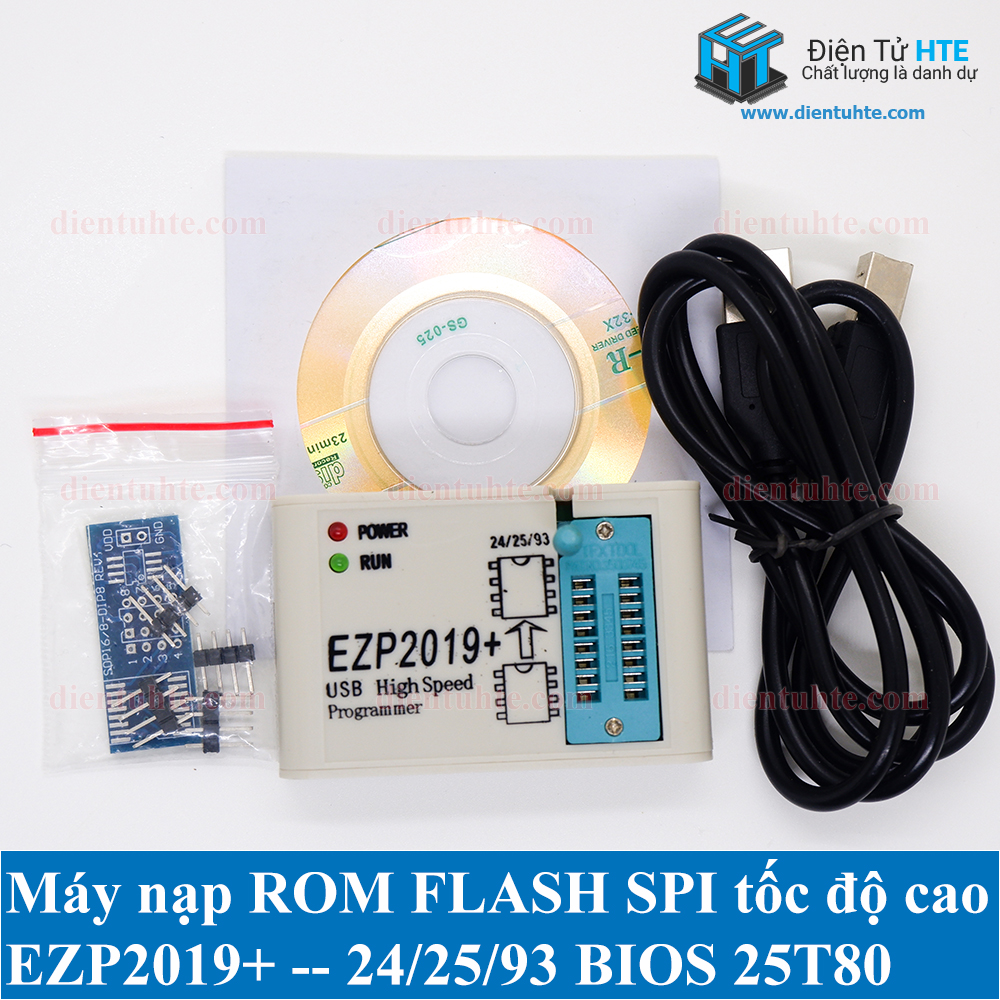

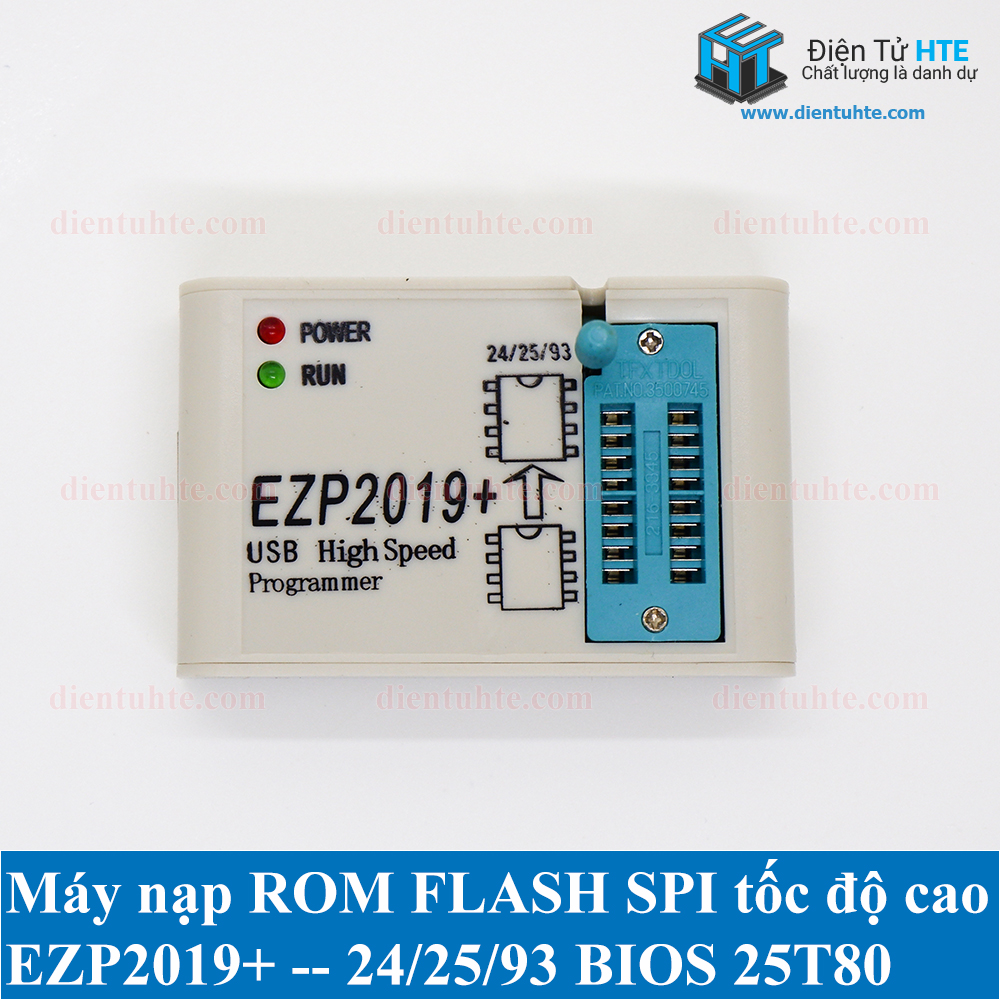

Máy nạp ROM SPI tốc độ cao EZP2019+

Tính năng

1. USB 2.0 interface speeds up to 12Mbps.

2. The super-fast read and write, read EN25T80 as long as three seconds, write EN25T80 just 9 seconds, the fastest currently on the market is the BIOS chip programmer.

The automatic identification chip type.

4. Automatic detection chip is properly seated.

The chip supply voltage is automatically selected.

6. The automatic offline copy.

7. PC software and programming support firmware upgrade.

8. Full support for 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM and other memory chips.

Supported chip list of models:

It supports almost all manufacturers 24,25,93 chips on the market!

********************25  SPI  FLASH**************

FRIEND: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040 , AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641
EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128
ES:ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT:F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
MXIC:MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
NEXFLASH:NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC:PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN:SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
SPANSION:S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
SST:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C
ST:M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64

********************24  EEPROM***************

ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALYST:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24WC512, CAT24C1024, CAT24WC1024

COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V , 3V 24C128, 24C128 5V, 3V 24C256, 24C256 5V, 3V 24C512, 24C512 5V, 3V 24C1024, 24C1024 5V

FAIRCHILD:FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L

HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP:24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64, 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC:NSC24C02, NSC24C02L, NSC24C64

RAMTRON:FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM:BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST:ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

XICOR:X24C01, X24C02, X24C04, X24C08, X24C16

*****************93  EEPROM********************

Akhan: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC:ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8, ATC93LC46(8bit), ATC93LC46(8bit)-SOP8, ATC93C56, ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit), ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit), ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8

ATMEL:AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

CATALYST:CAT93C46(16bit), CAT93C46(8bit), CAT93C46A, CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A, CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit), CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)

COMMON:93C46(16bit), 93C46(8bit), 93C56(16bit), 93C56(8bit), 93C66(16bit), 93C66(8bit), 93C86(16bit), 93C86(8bit)

EXEL:XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD:FM93C06AM8(16bit), FM93C06AM8(8bit), FM93C06M8, FM93C06N, FM93C46AM8(16bit), FM93C46AM8(8bit), FM93C46AN(16bit), FM93C46AN(8bit), FM93CS46(16bit), FM93C56AN(16bit), FM93C56AN(8bit), FM93CS56(16bit), FM93C66AM8(16bit), FM93C66AM8(8bit), FM93C66AN(16bit), FM93C66AN(8bit), FM93C66B, FM93C66M8(16bit), FM93C66MT8(16bit), FM93C66N(16bit), FM93CS66(16bit), FM93C86AM8(16bit), FM93C86AM8(8bit), FM93C86AN(16bit), FM93C86AN(8bit)

HOLTEK:HT93LC46A(16bit), HT93LC46A(8bit), HT93LC56A(16bit), HT93LC56A(8bit), HT93LC66A(16bit), HT93LC66A(8bit)

ICT:ICT93C46(16bit), ICT93C46(8bit), ICT93C56(16bit), ICT93C56(8bit), ICT93C66(16bit), ICT93C66(8bit)

ISSI: IS93C46 (16bit), IS93C56 (16bit), IS93C66 (16bit)

MICROCHIP:93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit), 93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8, 93C46A, 93C46B, 93LC46(16bit), 93LC46(16bit)-SOP8, 93LC46(8bit), 93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit), 93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit), 93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56(8bit)-SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66(16bit), 93AA66(8bit), 93AA66(8bit)-SOP8, 93C66(16bit), 93C66(16bit)-SOP8, 93C66(8bit), 93C66(8bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66(16bit), 93LC66(16bit)-SOP8, 93LC66(8bit), 93LC66(8bit)-SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76(16bit), 93AA76(8bit), 93C76(16bit), 93C76(8bit), 93LC76(16bit), 93LC76(8bit), 93LC76A, 93LC76B, 93AA86(16bit),93AA86 (8bit), 93C86 (16bit), 93C86 (8bit), 93LC86 (16bit), 93LC86 (8bit), 93LC86A, 93LC86B
NSC:NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM:BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST:ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

*********25 EEPROM****************

ATMEL:AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

CATALYST:CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S

COMMON:25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

MICROCHIP:25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON:FM25C160, FM25640, FM25CL64

ST:ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI:TI2532, TI2532A, TI2564

XICOR:XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
