Ứng dụng:
DIY mobile power, vehicle power, communication and power supply equipment.
Thông số kỹ thuật:
|
Model Name |

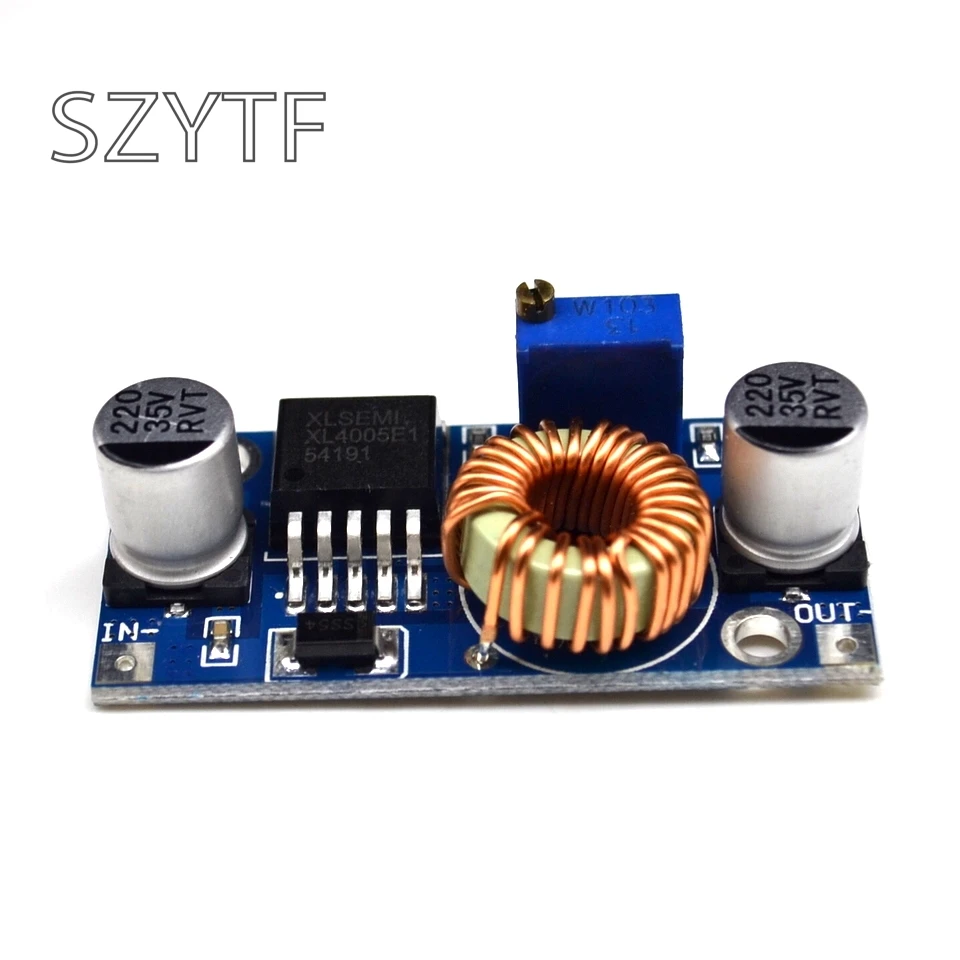

DC-DC 5A large current step-down power supply module |
|
The modular nature |
Non-isolated buck |
|
Rectifier |
Non-synchronous rectification |
|
Input voltage |
5V-32V |
|
The output voltage |
0.8V-24V |
|
Output current |
Peak 5A (3.5A or more work to enhance cooling ) |
|
Conversion efficiency |
Up to 90% |
|
On-off level |
300KHz |
|
Output ripple |
30mV ( no load ) |
|
Hello Elena |
±0.5% |
|
Voltage Regulation |
±2.5% |
|
Operating temperature |
-40 deg.] C to +85 deg.] C |
|
External dimensions |
43 * 21 * 14 (length * width * high) ( mm ) |
